153-25 HO Scale Bulk Pack - 25 pair #153 "Scale" Whisker® Metal Coupler - Short (1/4") Centerset Shank - without gearboxes
The #153 "Scale" Short Coupler will work anywhere a #23, #33, & #143 Coupler will work.

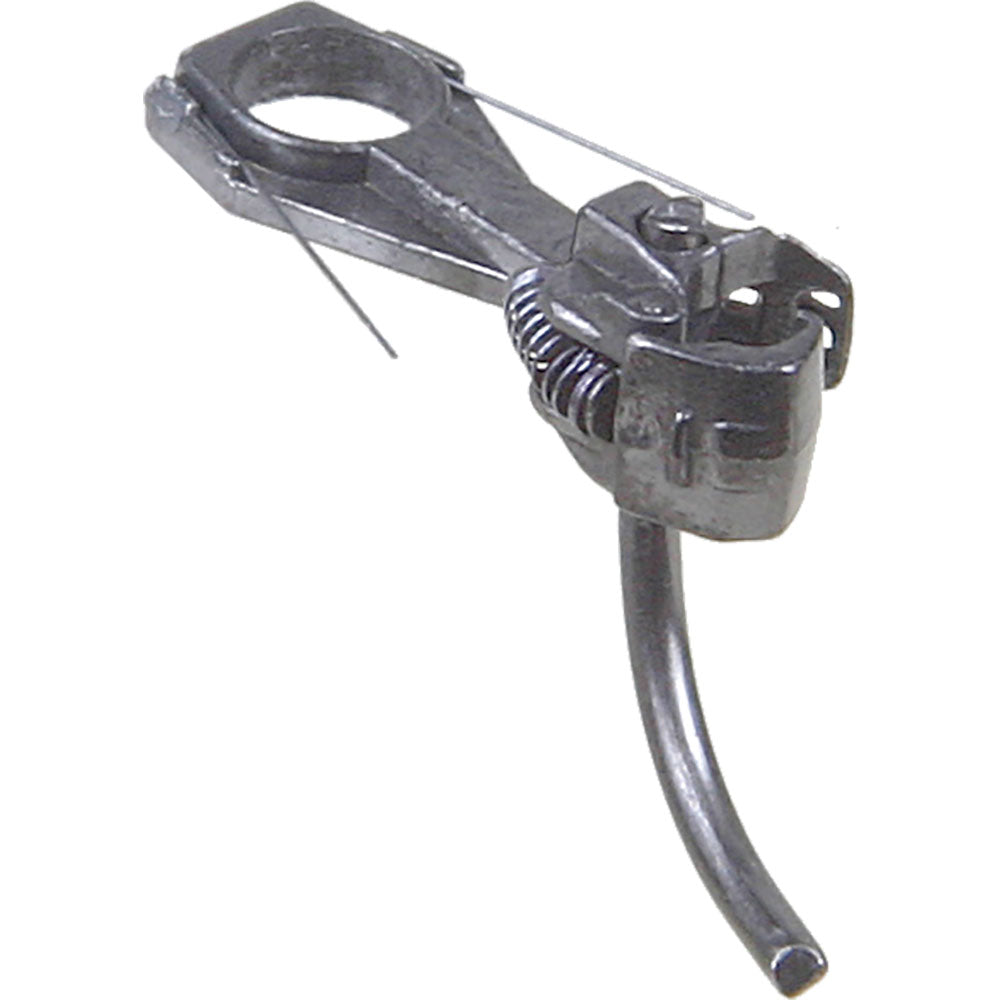

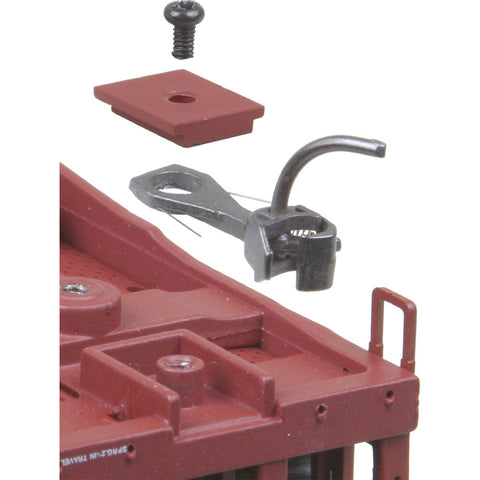

The #153 "Scale" All Metal Self-Centering WHISKER® Coupler features a "Scale" Metal Coupler (a smaller head coupler which is more to scale and is patterned after the type 'E" couplers) & Metal WHISKER® Centering Spring, insulated Draft Gear Box and Lid. The #153 Coupler may be mounted in Manufacturers cast-on coupler pockets or any of our HO-Scale draft gear boxes (except #233 30-series gear box). The coupler will couple and uncouple with other Kadee® HO and HOn3 couplers. The coupler has the same shank length as the #23, 33 or 43 coupler which will allow the modeler to remove the existing #23, 33 or 43 coupler and replace with the new smaller coupler. The #153 coupler is made of the same metal as the #43 for strength and rigidity.

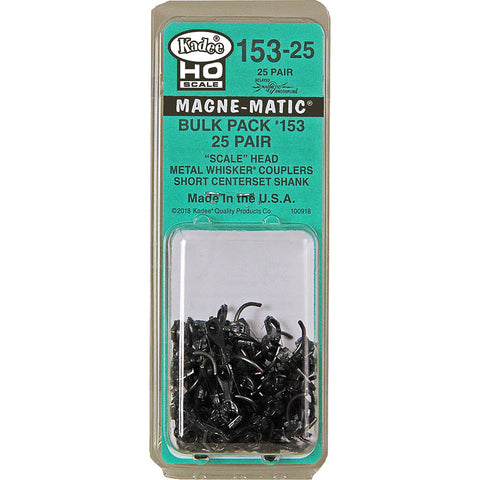

Package Includes:
- (25) Pair #153 Scale Whisker® Metal Couplers - Short Centerset Shank
- (Extra) #625 Knuckle Springs
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
| Material | - Metal |

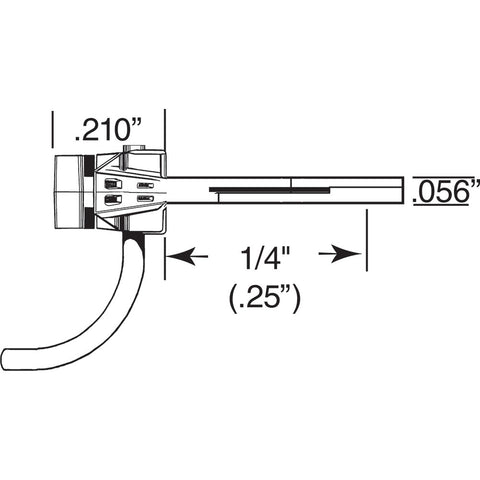

| Shank Length | - Short (1/4") (center hole to back of coupler head) |
| Coupler Offset | - Centerset |
| Knuckle Spring | - #625 |
| Centering System | - Whisker® |
| Head | - "Scale" Head |
| Works In Place of | - #23, #33 (#143 in a #252 box), short centerset "clone" couplers |
| Works With | - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
| Mounting Height | - 25/64" |
| Centerline | - 25/64" |
| Trip Pin Height | - 1/32" |
| Center Hole | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
