The #156 "Scale" Long Coupler will work anywhere a #26, #36, & #146 Coupler will work.

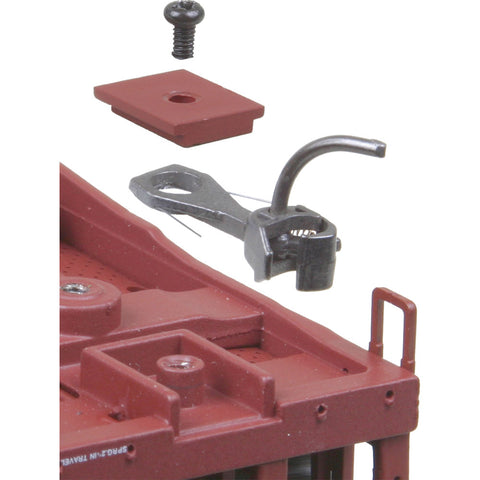

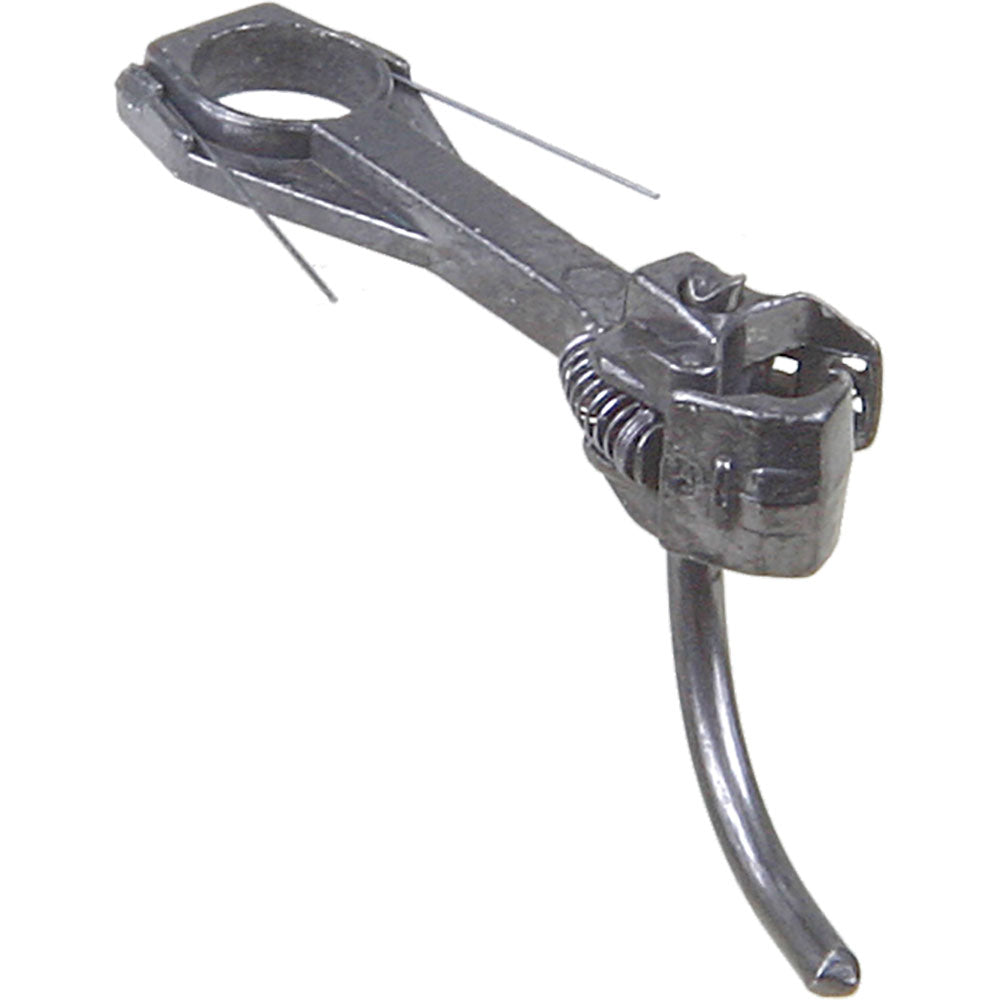

The #156 "Scale" All Metal Self-Centering WHISKER® Coupler features a "Scale" Metal Coupler (a smaller head coupler which is more to scale and is patterned after the type 'E" couplers) & Metal WHISKER® Centering Spring, insulated Draft Gear Box and Lid. The #156 Coupler may be mounted in Manufacturers cast-on coupler pockets or any of our HO-Scale draft gear boxes (except #233 30-series gear box). The coupler will couple and uncouple with other Kadee® HO and HOn3 couplers. The coupler has the same shank length as the #26, 36 or 46 coupler which will allow the modeler to remove the existing #26, 36 or 46 coupler and replace with the new smaller coupler. The #156 coupler is made of the same metal as the #46 for strength and rigidity.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

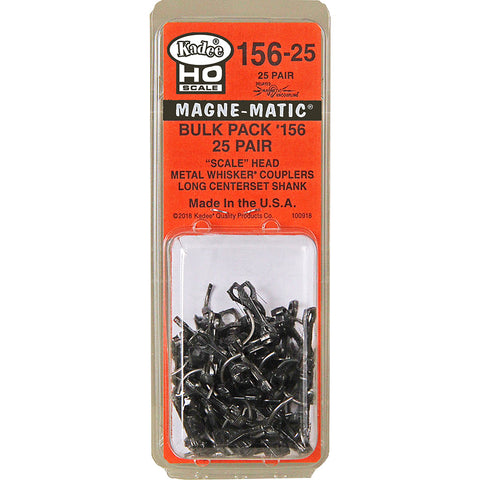

Package Includes:
- (25) Pair #156 Scale Whisker® Metal Couplers - Long Centerset Shank
- (Extra) #625 Knuckle Springs
Material | - Metal |

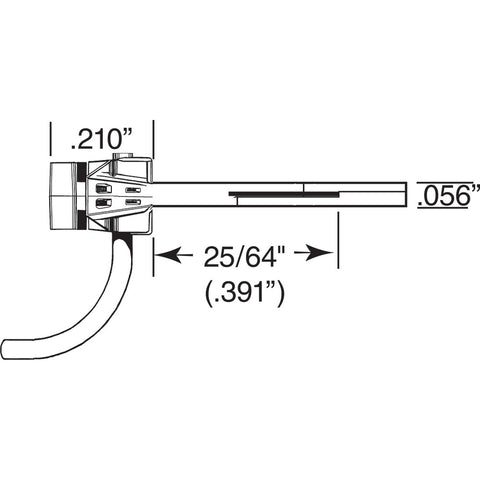

Shank Length | - Long (25/64") (center hole to back of coupler head) |
Coupler Offset | - Centerset |
Knuckle Spring | - #625 |
Centering System | - Whisker® |
Head | - "Scale" Head |
Works In Place of | - #26, #36 (#146 in a #252 box), long centerset "clone" couplers |
Works With | - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
Mounting Height | - 25/64" |
Centerline | - 25/64" |
Trip Pin Height | - 1/32" |
Center Hole | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
