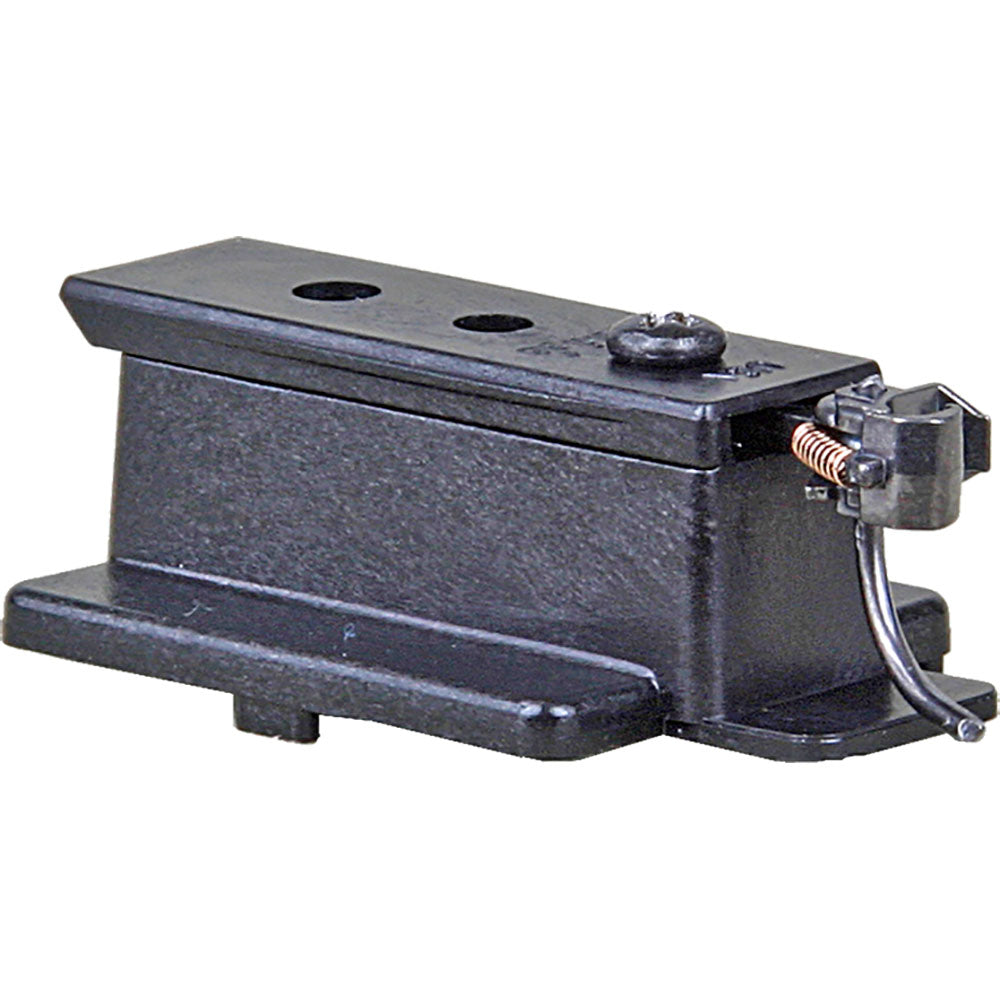

#206 Insulated Muti-Purpose Coupler Height Gauge - HO Scale
Includes the #148 Whisker® Coupler & #158 Scale Whisker® Coupler. - Kit.
EASY TO ASSEMBLE & USE A must have tool for gauging mounting height, correct coupler height, trip pin, and permanent uncoupler heights for achieving trouble free coupler performance. Also has a built in HO track gauge.
"Takes the guess work out"
Four tools in one.
1. Provides instant visual reference of proper coupler height.
2. Accurately measures proper trip pin height above rail.
3. Built-in track gauge. (N.M.R.A. Standard)
4. Movable dowel tests Kadee® Magne-Matic® Uncoupler height and registers the needed adjustments.
5) Provides instant visual reference of proper body mounting height.

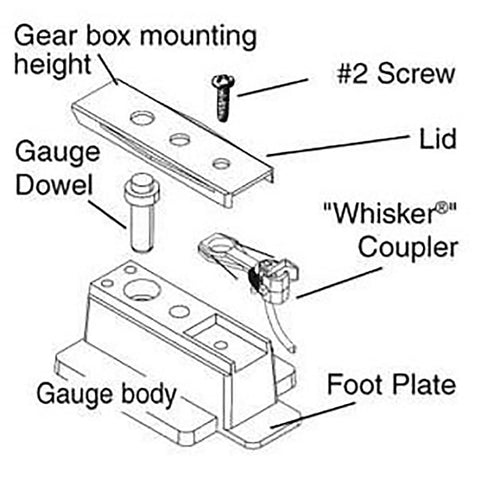

Package Includes:
- (1) each #148 Whisker® Coupler
- (1) each #158 Whisker® Coupler
- (1) each #206 Lid
- (1) each #206 Dowel
- (1) each #206 Height Gauge Base
- (10) each .015 Red Fiber Washers
- (2) each #622 Knuckle Springs
- (2) each #625 Knuckle Springs
- (1) each 2 x 1/4" Screw
Track not included
