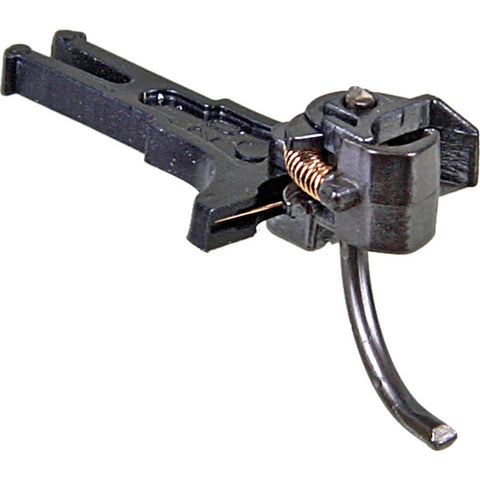

#20 HO Scale NEM 362 European-Style Couplers - Extra Long (11.68mm , .460 inch , 29/64")
This industry leading coupler features an NEM 362 European Style Coupler. The #20 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Two pair per package
(w/o Draft Gear Boxes)
UPC: 765484000204
Made in the U.S.A.
HO-Scale
Package Includes:
- (2) Pair #20 Couplers (Aassembled) - Extra Long Underset
- (2) #622 Knuckle Springs
#20 Coupler Features:
| Material | - Metal Knuckle, Plastic Coupler Swallow-tail Shank |
| Length | - Extra Long (11.68mm , .460 inch , 29/64") (pulling face to the dovetail sholder) |
| Coupler Offset | - Underset |
| Knuckle Spring | - #622 |
| Centering System | - NEM European Style Coupler |
| Head | - Standard Head |
Mounting Specifications:
| Mounting Height | - 11.68mm , .460" |
| Centerline | - 9.9mm , .390" |
| Trip Pin Height | - .08mm , .031" |
