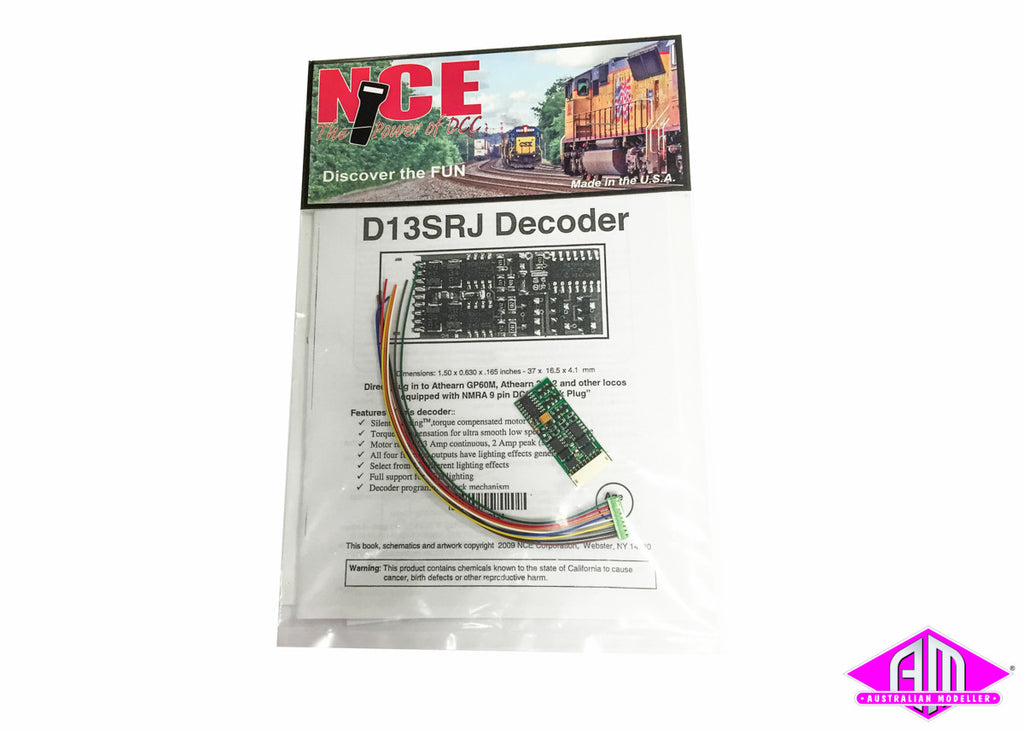

NCE - D13SRJ Decoder

  • Sale
  • $29


NCE HO scale 9-pin "Quick-Plug" EPF (extended packet format) plug-in decoder (version 3.5). 4 functions and 15 different lighting effects. Instructions included. This decoder is designed for HO scale locomotives equipped with an NMRA 9-pin DCC "Quick-Plug" such as:

  • Athearn GP60M
  • Athearn Genesis 2-8-2
  • Athearn Genesis 4-6-2
  • Athearn Genesis RS-3
  • and others.

Features:

  • Silent Running™ motor drive
  • Torque Compensation for ultra smooth low speed performance
  • Programmable Start, Mid and Maximum speed works for all speed modes
  • Motor rating 1.3 Amp continuous, 2.0 Amp peak (stall)
  • All 4 function outputs have lighting effects generators
  • Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)
  • Function outputs can be mapped to different functions
  • 2 or 4-digit addressing
  • Uploadable speed table interpolated to 128 speed steps
  • 28 and 128 speed mode operation
  • Support for all forms of DCC programming
  • Decoder programming lock mechanism
  • Brake on DC feature assists automatic train control
  • Dimensions: 37.0mm x 16.5mm x 4.1mm (1.5" x .63" x.165")
