Circuitron - 800-5202 - DT-2 - Logic Grade Crossing Detector

  • Sale
  • $100.05


The CIRCUITRON DT-2 is an advanced, integrated circuit design, logic type detection unit for grade crossings. The DT-2 operates on a photoelectric principle with tiny Opto-Sensors that mount between the ties. In addition, the DT-2 incorporates track polarity detection for bi-directional applications and will provide fully automatic operation for all scales utilizing 2 rail DC operation. This advanced circuitry closely duplicates prototype grade crossing action. The DT-2 can also provide bi-directional operation for AC or command control track power, however, the train direction must be manually set from the panel. The DT-2 will operate off a wide range of supply voltages between 10 and 18 volts AC or DC. The output terminal on the DT-2 provides a connection to ground (-) when the train is detected. The output can control any DC powered device with a current draw of 250 ma. or less

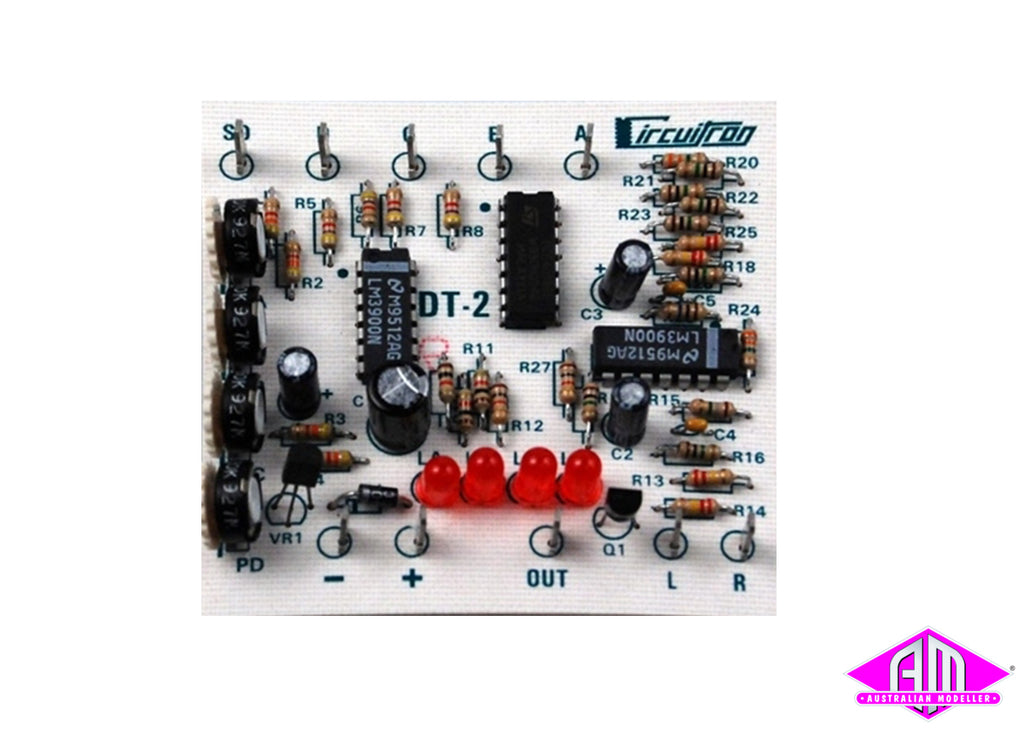

The DT-2 is fully assembled on a 3” x 3” printed circuit board and will operate equally well from any 10-18 volt AC or DC power source.
