NSWGR Sellers Turntable Kit. HO Scale.

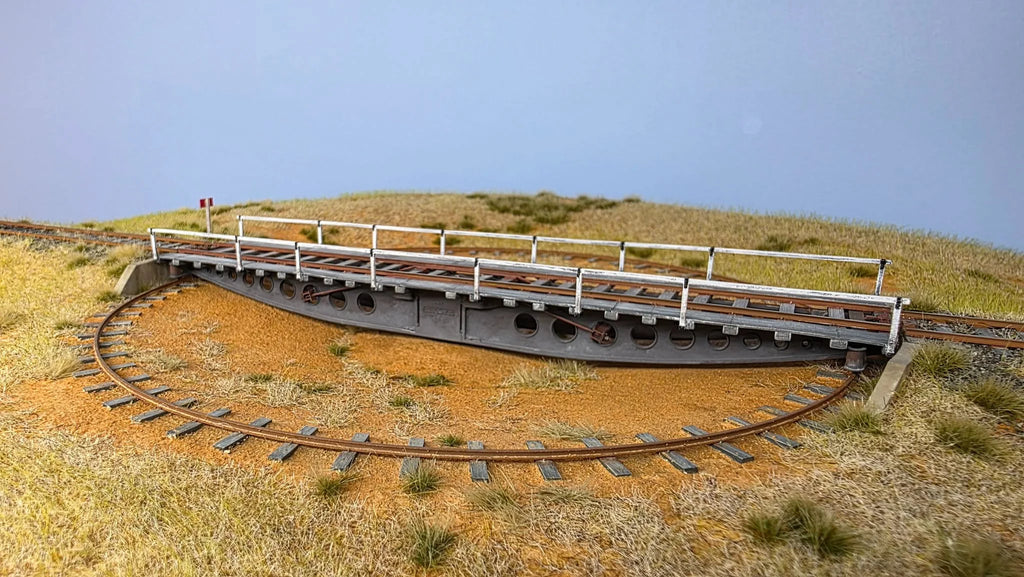

This kit features a highly detailed bridge that is made up of an etched nickel silver main frame with cast polyurethane castings for the bridge sides, transoms, outriggers and handrailing.

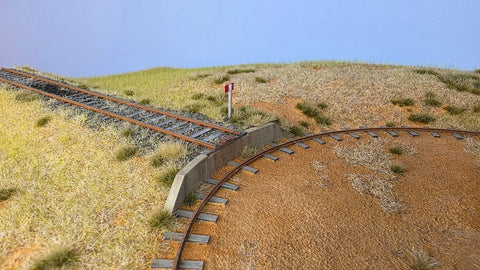

A cast Hydrocal pit that has been created from a machined aluminium master. The pit has been cast directly to a 300mm x 300mm marine grade plywood base.

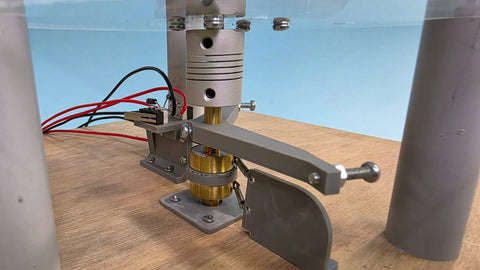

Two special roller bearings accept a brass main shaft that connects to the bridge itself via a two pin connector to allow the bridge to be removed for servicing.

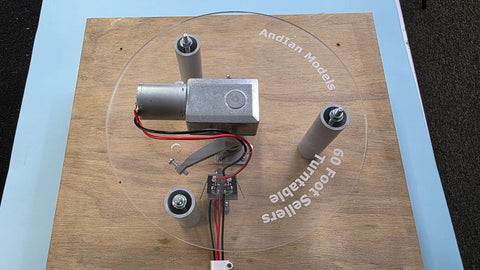

Included with the kit is a motor/gearbox and components to allow the bridge to be turned and indexed to 90 degrees.
