KD-804

KD-804 - #804 Medium Centerset Shank Plastic Coupler with Plastic Draft Gear Box - Black 1pr (O Scale)

  • Sale
  • $7.95

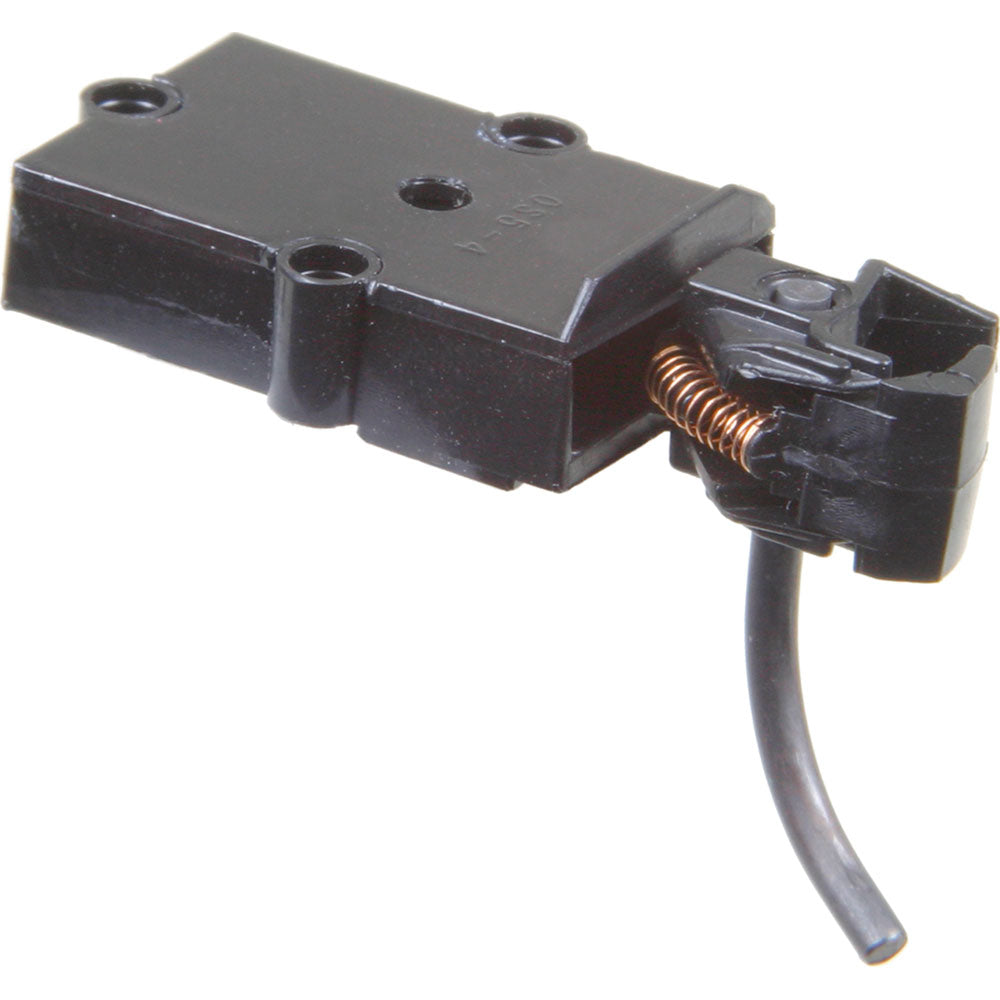

#804 Medium Centerset Plastic Couplers with Plastic Gearboxes - Black - O Scale

This industry leading coupler features Original Style Head Medium Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #804 Plastic Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold separately), #819 Extended Metal Gearbox (sold separately).

Package Includes:

  • (2) Each #804 Original Style Plastic Couplers - Medium Centerset Shank
  • (2) Each #817 Plastic Gearboxes & lids
  • (3) Each #850 O Scale Centering Springs

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

  • Simple Drop in Design
  • Trouble Free Operation
  • Compatible with All Kadee® O-Scale Couplers
  • World-Renowned Quality & Performance
  • They just Last & Last & Last...
#804 Plastic Coupler Features:
Material  -   Plastic
Shank Length  -   Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset  -   Centerset
Centering Spring  -  #850 O Scale Centering Springs
Knuckle Spring  -   #845 O Scale Knuckle Springs
Head  -  Original Style Head
Works In Place of  -   #740, #745, #800, #801, #805, & #816 O Scale Medium Centerset Shank Couplers
Works With  -   #817, #818, #819 Draft Gearboxes

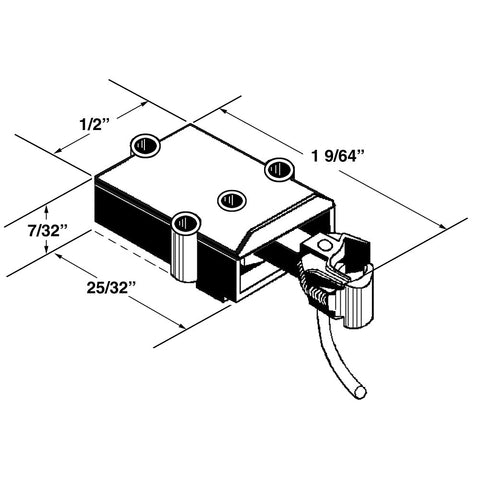

#817 Plastic Draft Gearboxes & Lids Features:
Material  -   Plastic
Dimensions  -  25/32"L x 1/2"W x 7/32"H
Works With  -   #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers

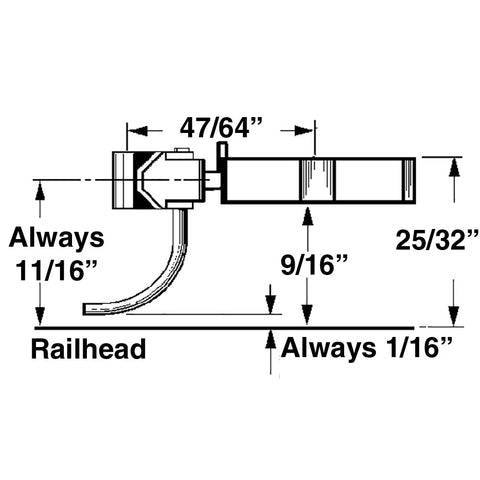

Mounting Specifications:
Mounting Height  -   25/32"
Centerline  -   1 1/16"
Trip Pin Height  -   1/16"
Mounting Holes  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)
